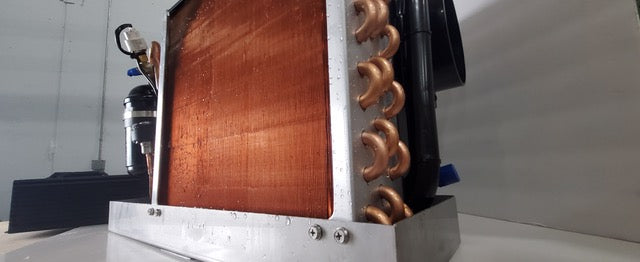

Introducing Mabru's New 17,000 BTU 230V self-contained SC17VFD, utilizing a Variable Frequency Drive (VFD) On-demand, a VFD adjusts the speed of an HVAC fan and variable speed compressor, saving energy and extending the life of the team. A VFD responds to a signal from a controller, allowing equipment to run at the power required to meet the demand for heating and cooling. This replaces the older version of conventional AC with starting amp spikes, eliminating on / off starts at the compressor. Ideal for battery off grid solar operation or small generators, best marine heat pump ever.
The new Mabru SC17VFD with the variable speed compressor will draw fewer amps than its predecessor (the SC17K), making it more affordable to work with inverters and smaller generators.
Comparing the consumption between the conventional AC @ 230V, the New SC17VFD @ 230V will save energy up to 50% in energy, allowing the air conditioner to run more smoothly and continuously, constantly drying the air, which is represented in greater comfort.
ULTRA EFFICIENT MARINE AIR CONDITIONER 17000 BTU 230V
Cooling capacity: 17,000BTU
Heating capacity: 17,800BTU
Power source: 230VAC, 50/60HZ
Cooling Amp draw (230V): 2.3 at low speed, and 4.4 at full speed.
Heating Amp draw (230V): 2.6 at low speed, and 4.8 amp at full speed.
Fan Blower CFM H/M/L: 800/670/570
Pump GPH minimum: 500gph
Minimum Air Duct Size (in) : 6 inch
Minimum Return Air Grille Size: 144 sq in
Minimum Supply Air Grille Size: 19 sq in
Sea Water pipe: 5/8 Inches
Net weight lbs: 68 Lb
Shipping weight: 77 Lb
Measurements: W 19.6 x L 12.25 x H 13 Inches
