New All Black Option *ROOFTOP 12V AIR CONDITIONER 12000 BTU FOR VEHICLES: CAMPERVANS, RV, PROMASTER, SPRINTER, TRANSIT by MABRU
New All Black Option *ROOFTOP 12V AIR CONDITIONER 12000 BTU FOR VEHICLES: CAMPERVANS, RV, PROMASTER, SPRINTER, TRANSIT by MABRU
Click here for the Mabru RV Installation Manual
Not Recommended for Self Installation*
Maximum Cooling Capacity:12000BTU
Condenser fan air volume: 2200m3/h
Evaporator blower air volume: 600m3/h
Refrigerant / Weight: HFC-134a/650g
Refrigerant Oil: RH68
Unit Size: 970x858x150mm

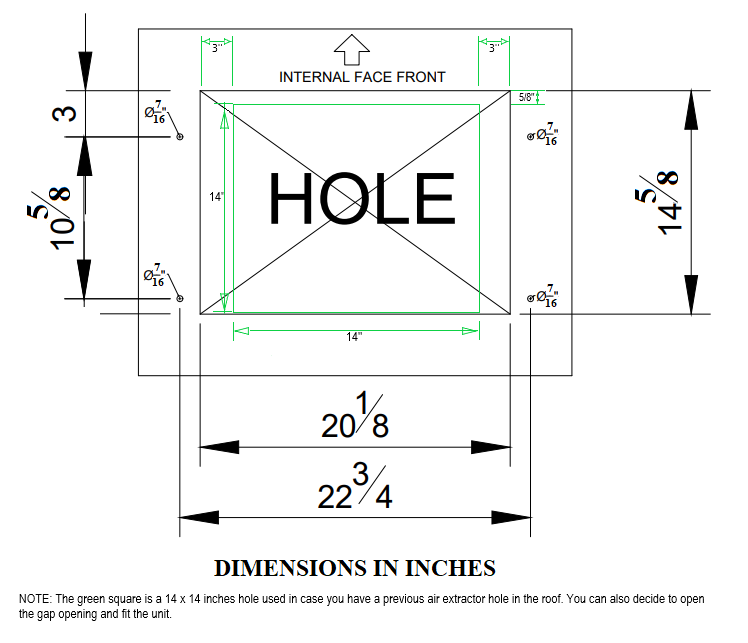

Min Hole size: 320x640mm
Noise: 33 dB

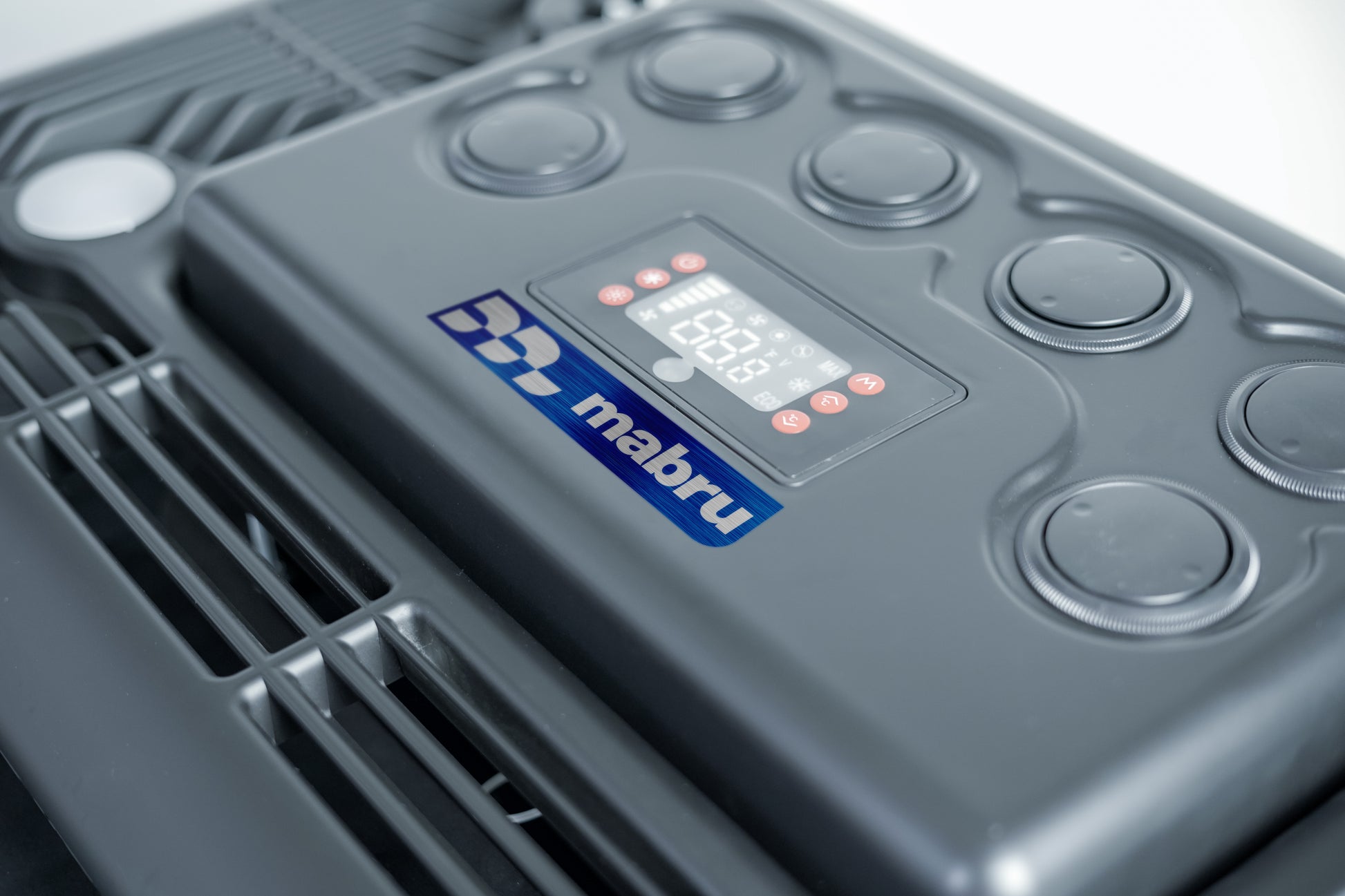

Three working cooling modes: manual, automatic, and ECO.
Display temperature Units: In Fahrenheit. Formula to convert °C to °F => (T(°F) = T(°C) × 1.8 + 32)
The current version 2022 and up is designed for the territory of the United States and the temperature is set in degrees Fahrenheit Only.
Suitable for RV, Vans, Bus, and Trucks.

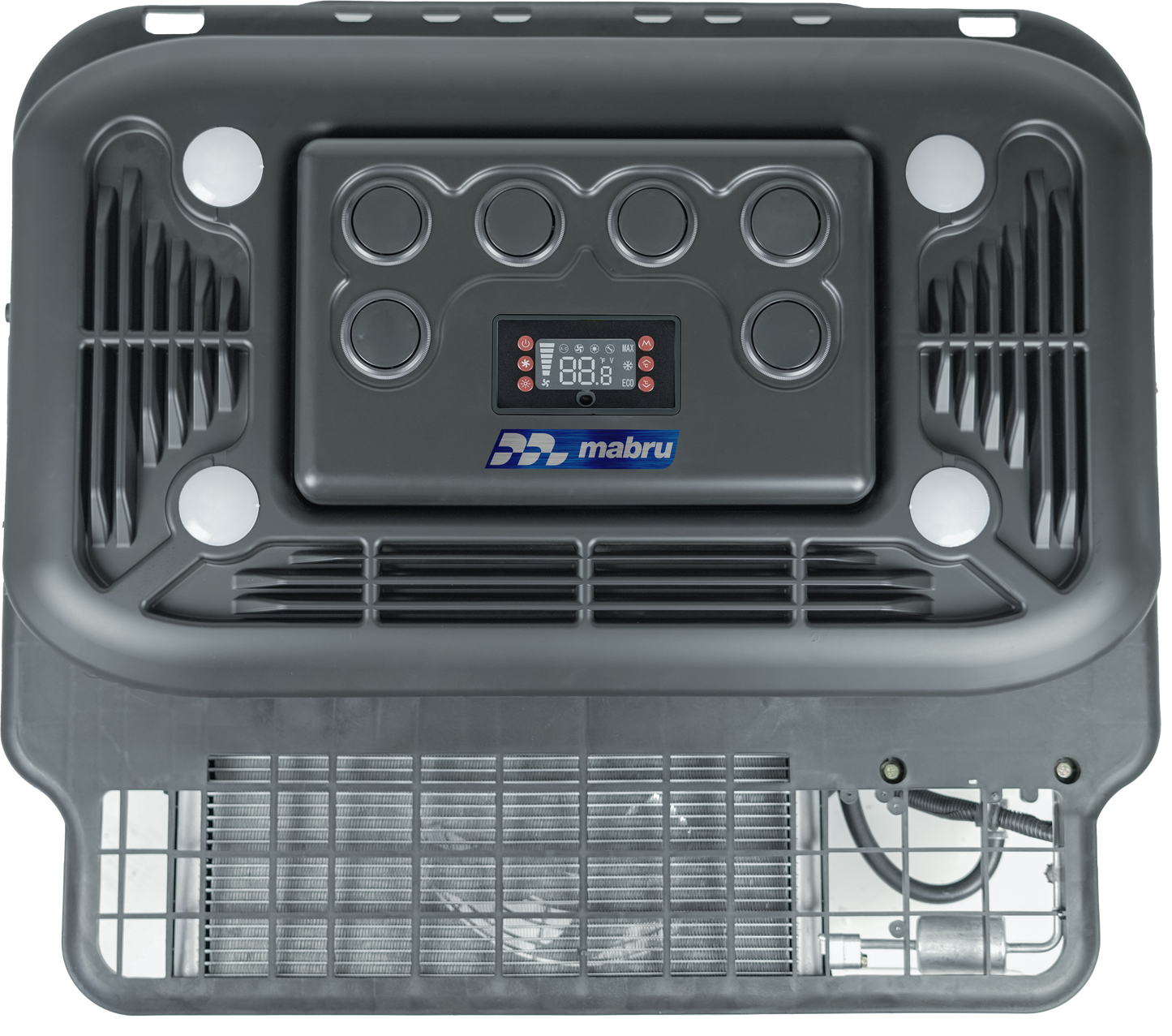

Low Profile design to be installed on vehicle rooftop.
Easy to install on the roof of any vehicle, it is discreet from the outside and attractive from the inside. You only need to connect the positive and negative poles of the battery and with a 500 amp house battery bank, you can achieve up to 10 hours of continuous operating time!
Extremely energy efficient 12 volt DC (battery-powered) alternative to traditional, 120 volt AC rooftop air conditioner units.
Only uses 22-55 amps (at 12 volt DC) when running – enables using AC off-grid from your camper van batteries for longer periods of time.
12,000 BTU cooling capacity with three fan speeds (low, medium, or high) and 3 modes (low, high, and eco).
One-year limited warranty.
NOTE: Lithium Batteries are sold separately.
Brand Name MABRU ROOFTOP 12,000BTU (RVSC12DC))
Item Weight 90 pounds
Box Dimensions 39 x 42 x 15 inches
Weight on a pallet: 120Lb
Noise 33 dB
Part Number RVSC12DC
Color Black Plastic (painted)
Voltage 12 Volts DC
Wattage 380 ~ 750 Watts
BTU 12,000 BTU
Batteries Required? Yes (12 Volts) Not included
+1 (954) 467-1770
The price does not include SHIPPING and TAXES. Both will be calculated separately from the sale price.
In case you are a retail company (resell the products you purchase online to your customers) and have your Annual Resale Certificate Sales Tax, please send it before placing the order to sales@mabrumarine.com.
In case your purchase is paid by Credit Card, a convenience fee of 3% of the total amount will be applied, this charge is absorbed by the bank for each transaction made.
